MOSFET场效应晶体管

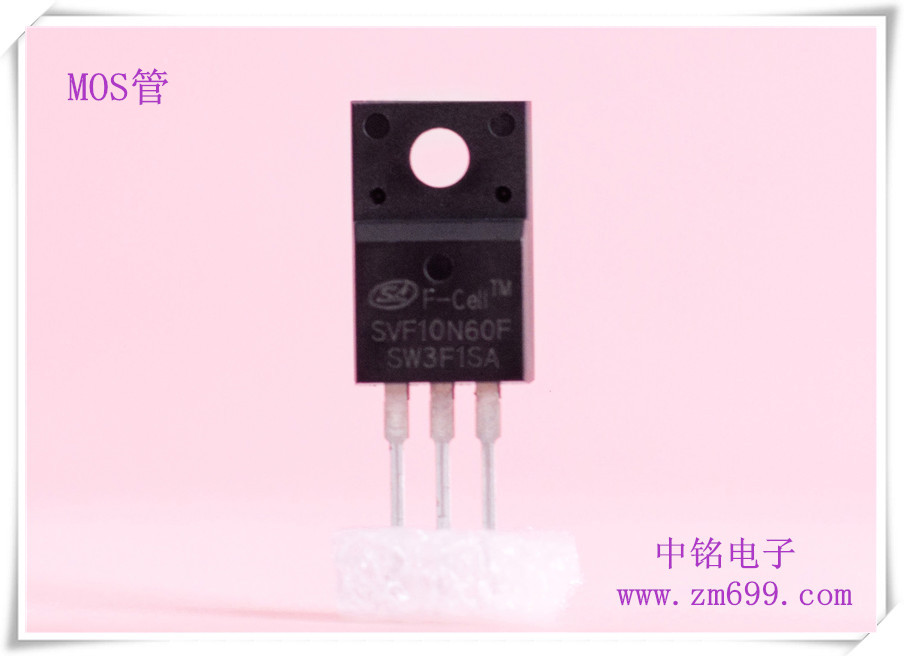

型号:SVF10N60
一、概述
SVF10N60T/F/FG/S/KN沟道增强型功率MOS场效应晶体管采用士兰微电子的F-CellTM平面高压VDMOS工艺技术制造。工艺及条状的原胞设计结构使得该产品具有较低的导通电阻、优越的开关性能及很高的雪崩击穿耐量。该产品可广泛应用于AC-DC开关电源,DC-DC电源转换器,H桥PWM马达驱动。
二、特性
◆10A,600V,RDS(on)(典型值)=0.75Ω@VGS=10V
◆低栅极电荷量
◆低反向传输电容
◆开关速度快
◆提升了dv/dt能力
三、应用领域
AC-DC开关电源 | AC-DC电源转换器 | 高压H桥PWM马达驱动 |

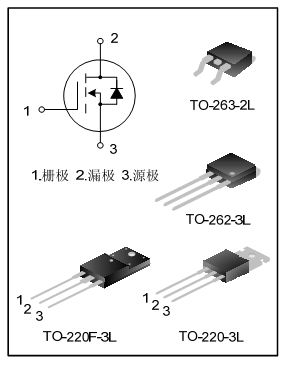

四、封装/订购信息

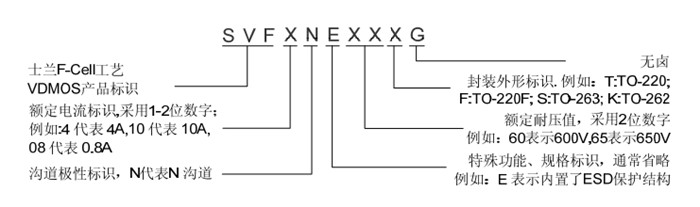

五、命名规则

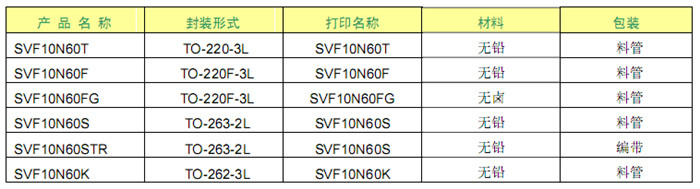

六、产品规格分类

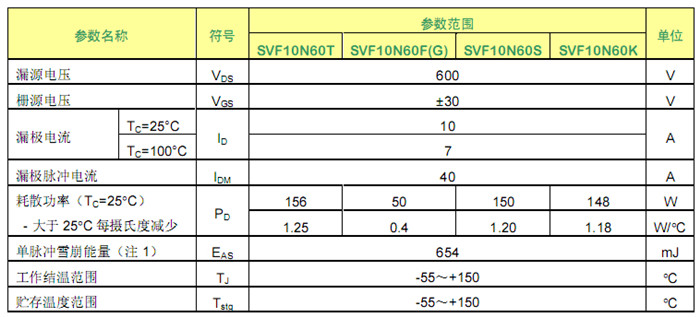

七、极限参数
