NCE N-Channel Enhancement Mode Power MOSFET
Modle：NCE90R1K2K
一、Description
The series of devices use advanced super junction echnology and design to provide excellent RDS(ON) with low gate charge. This super junction MOSFET fits the industry!ˉs AC-DC SMPS requirements for PFC, AC/DC power conversion, and industrial power applications.
二、General Features
l New technology for high voltage device
l Low on-resistance and low conduction losses
l Small package Ultra Low Gate Charge cause lower driving requirements
l 100% Avalanche Tested
l ROHS compliant
三、Application
l Power factor correction (PFC)
l Switched mode power supplies(SMPS)
l Uninterruptible Power Supply (UPS)

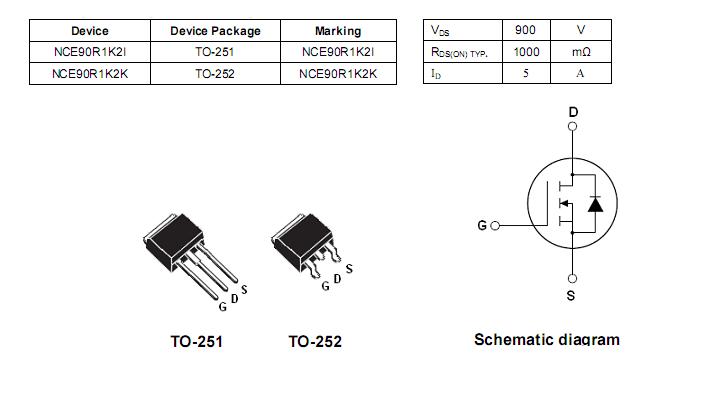

四、Package Marking And Ordering Information

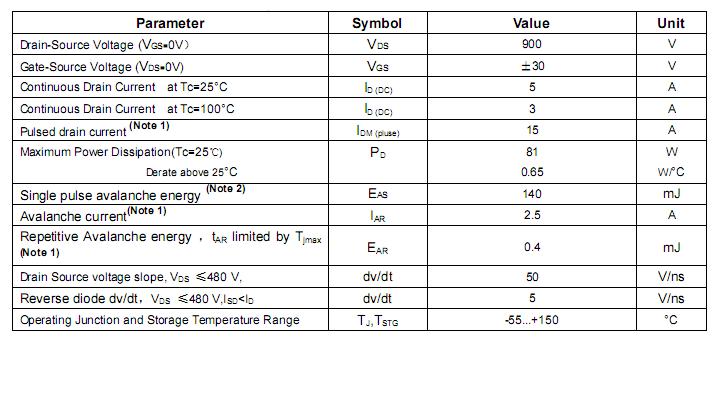

五、Absolute Maximum Ratings (T =25unless otherwise noted)
.jpg){kind=small}
