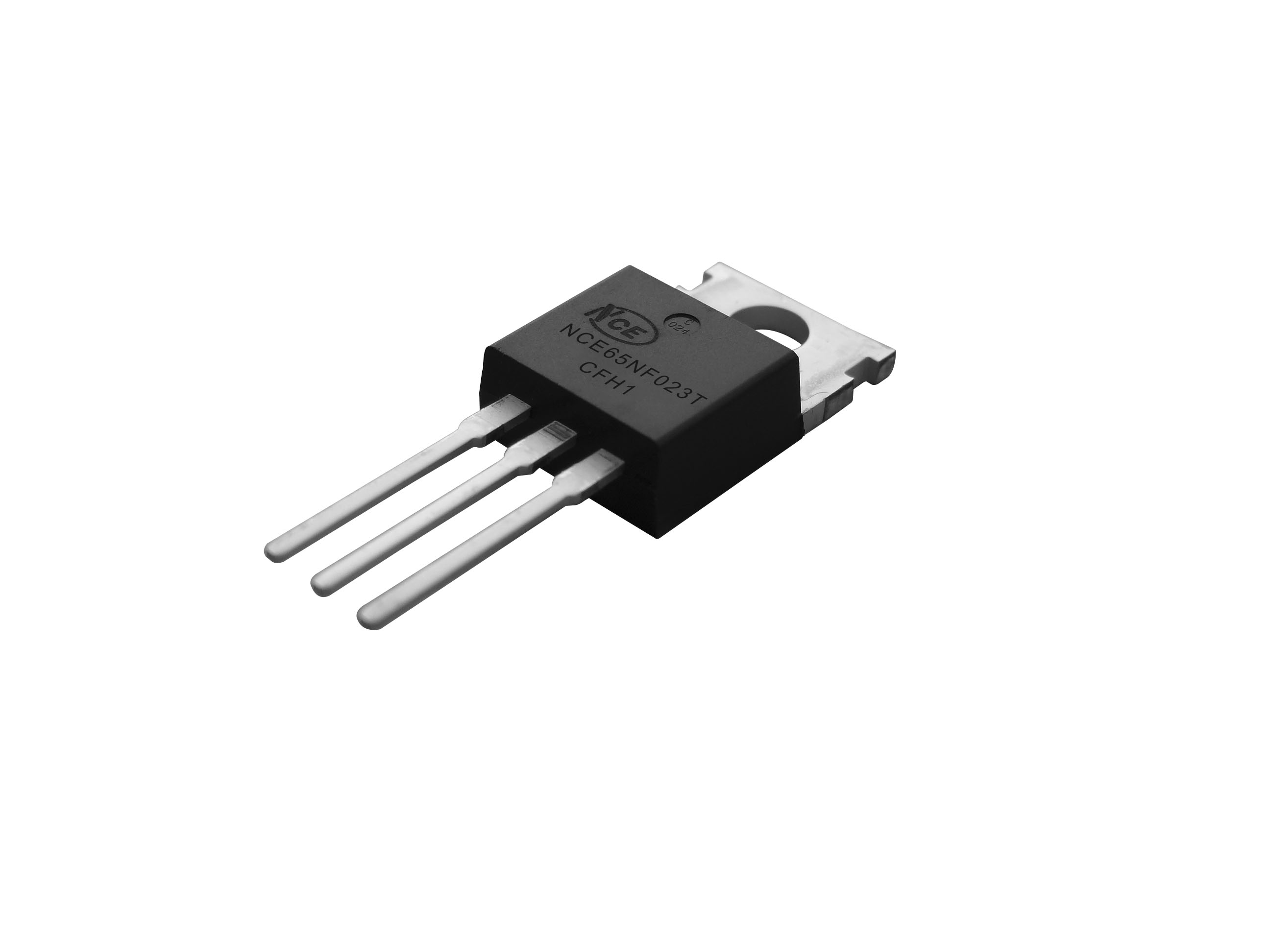

新洁能场效应管NCE65NF023T-

TO-220F封装MOS管

一、General Description

The series of devices use advanced trench gate superjunction technology and design to provide ultra-low RDS(ON)and low gate charge and With a

rapid recovery bodydiode.This super junction MOSFET fits the industry’s AC-DCSMPS requirements for PFC, AC/DC power conversion,industrial power

applications,Fast charger, new energyvehicle charging pile, on-board OBC etc.

二、Features

New technology for high voltage device

Ultra low on-resistance and ultra low conduction losses

Ultra Low Gate Charge cause lower driving requirements

Diode reverse recovery speed is super fast

100% Avalanche Tested and 100% Trr Tested

High reliability

ROHS compliant

三、Application

Power factor correction（PFC）

Switched mode power supplies(SMPS)

Uninterruptible Power Supply（UPS）

On-board charger(OBC)

四、Package Marking And Ordering Information

五、Schematic diagram
