芯朋微产品选型表

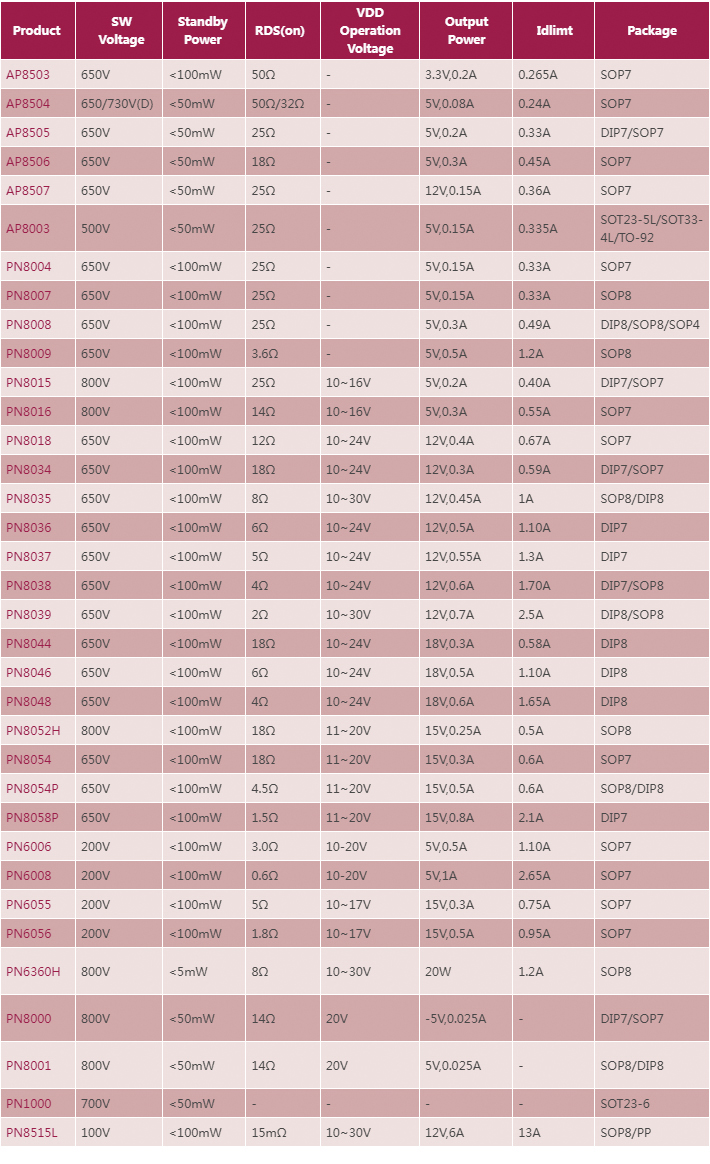

1、AC-DC交直流非隔离开关电源管理芯片
| Product | Character | SW Voltage | Standby Power | Rds(on) |
VDD operation Voltage |
Out Power | Idlimt | Package | Note |
| AP8503 | CV bUCK/Buck-boost converter | 650V | <100mW | 50Ω | - | 3.3V0.2A | 0.265A | SOP7 | Output 3.3v |
| AP8504 | CV bUCK/Buck-boost converter | 650/730V(D) | <50mW | 50Ω/32Ω | - | 5V0.08A | 0.265A/0.24A | SOP7 | Output 5v |
| AP8505 | CV bUCK/Buck-boost converter | 650V | <50mW | 25Ω | - | 5V0.2A | 0.33A |
DIP7 SOP7 |
Output 5v |
| AP8506 | CV bUCK/Buck-boost converter | 650V | <50mW | 14Ω | - | 5V0.3A | 0.45A | SOP7 | Output 5v |
| AP8507 | CV bUCK/Buck-boost converter | 650V | <50mW | 25Ω | - | 12V0.15A | 0.36A | SOP7 | Output 12v |
| AP8003 | CV bUCK/Buck-boost converter | 500V | <50mW | 25Ω | - | 5V0.15A | 0.335A | Sot23-5l/Sot33-4l/TO-92 | Output 5v |
| PN8007 | CV bUCK/Buck-boost converter | 650v | <100mW | 25Ω | - | 0.33A | SOP8 | Output 5v | |
| PN8008 | CV bUCK/Buck-boost converter | 650V | <100mW | 25Ω | - |
5V0.3A 5V0.35A |
0.49A |
DIP8 SOP8 |
Output 5v |
| PN8009 | CV bUCK/Buck-boost converter | 650V<100 | <100mW | 3.6Ω | - | 5V0.5A | 1.2A | SOP8 | Output 5v |
