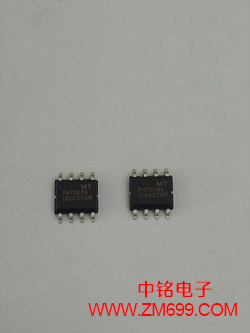

网格状高功率MOSFET--PN7303
一 概述
The PN7303 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration which operates up to 600 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications.
二 特性
* Fully operational to+600V
* 3.3V logic compatible
* dV/dt Immunity ±50V/nsec
* Floating channel designed for bootstrap operation
* Gate drive supply range from 5V to 20V
* Output Source / Sink Current Capability400 mA/900mA
* Independent Logic Inputs to Accommodate All Topologies
* -5V negative Vs ability
* Matched propagation delay for both channels
* Fixed Dead Time
三 应用
* Small and medium- power motor driver
* Power MOSFET or IGBT driver
* Half-Bridge Power Converters
* Full-Bridge Power Converters

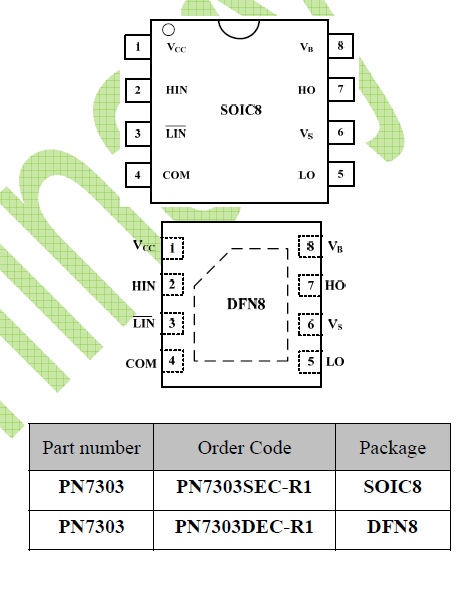

四 封装

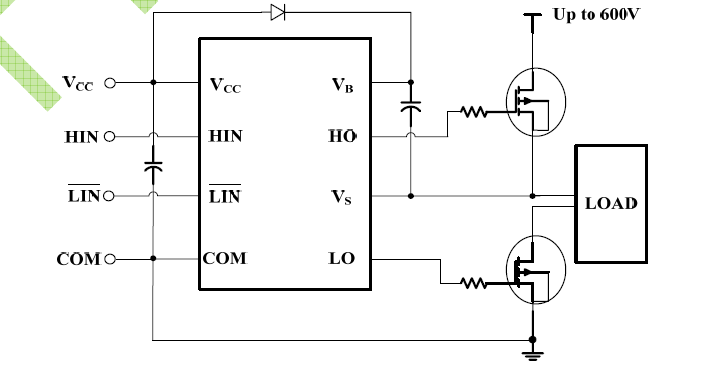

五 典型应用
.jpg){kind=small}
