高电压,高功率驱动MOSFET--PN7104
一 概述
The PN7104 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration which operates up to 600 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. Propagation delays are matched to simplify use in high frequency applications.
二 特性
* Fully operational to +600V
* 3.3V logic compatible
* dV/dt Immunity ±50V/nsec
* Floating channel designed for bootstrap operation
* Gate drive supply range from 10V to 20V
* UVLO for low side channels
* Output Source/Sink Current Capability 400mA/650mA
* Cross Conduction Protection with 520ns Internal Fixed Dead Time
* -10V negative Vs ability
* Matched propagation delay for both channels
三 应用
* Small and medium- power motor driver
* Power MOSFET or IGBT driver

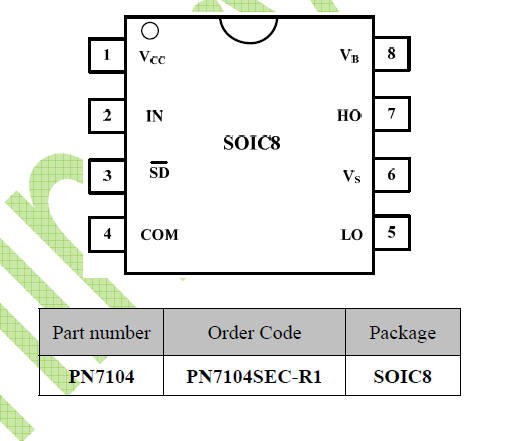

四 封装

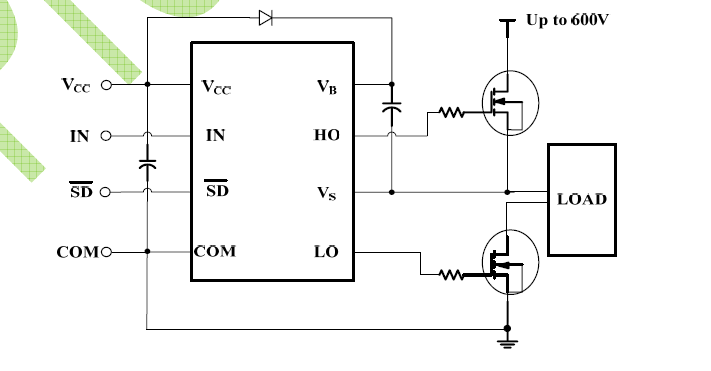

五 典型应用
.jpg){kind=small}
全国咨询热线：18929103949 唐小姐
销售部电话：0769-81150556
工程部电话：0769-85638990
QQ：1923681612
邮箱：dgzm699@163.com
总部地址：东莞市大岭山镇矮岭冚村沿河东街8号
佛山办事处：佛山市顺德区容桂镇细滘德宝北路合安街19号
中铭官网：www.zm699.com
| * 联系人： | 请填写您的真实姓名 |
| * 手机号码： | 请填写您的联系电话 |
| 电子邮件： | |
| * 采购意向描述： | |
| 请填写采购的产品数量和产品描述，方便我们进行统一备货。 | |
| 验证码： |
|

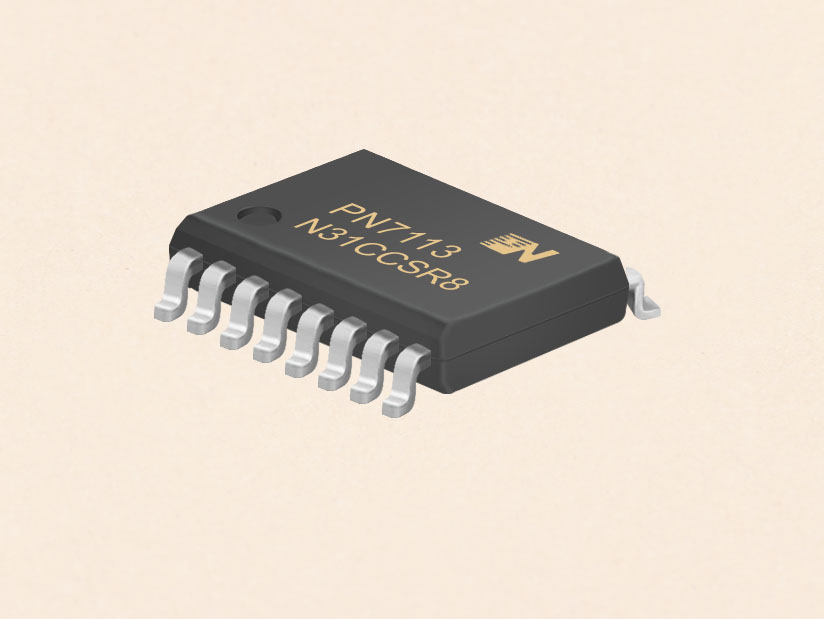

- 高、低驱动程序高功率MOSFET--PN7113
