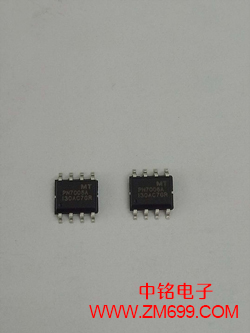

网格状电机驱动芯片--PN7103

一 概述

The PN7103 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration which operates up to 600 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications.

二 特性

* Fully operational to +600V

* 3.3V logic compatible

* dV/dt Immunity ±50V/nsec

* Floating channel designed for bootstrap operation

* Gate drive supply range from 10V to 20V

* UVLO for low side channel

* Output Source/Sink Current Capability 300mA/600mA

* -5V negative Vs ability

* Matched propagation delay for both channels

三 应用

* Small and medium- power motor driver

* Power MOSFET or IGBT driver

* Half-Bridge Power Converters

* Full-Bridge Power Converters Packages/Order information Part

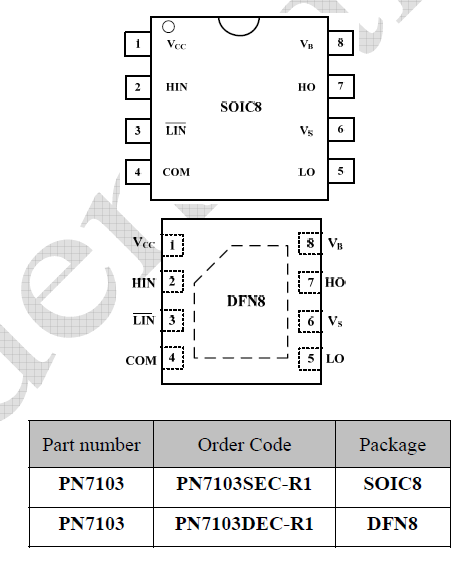

四 封装

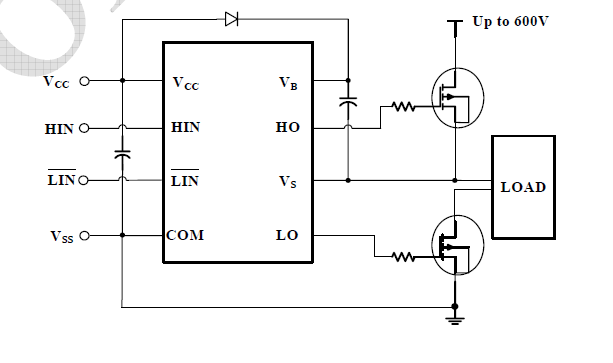

五 典型应用
